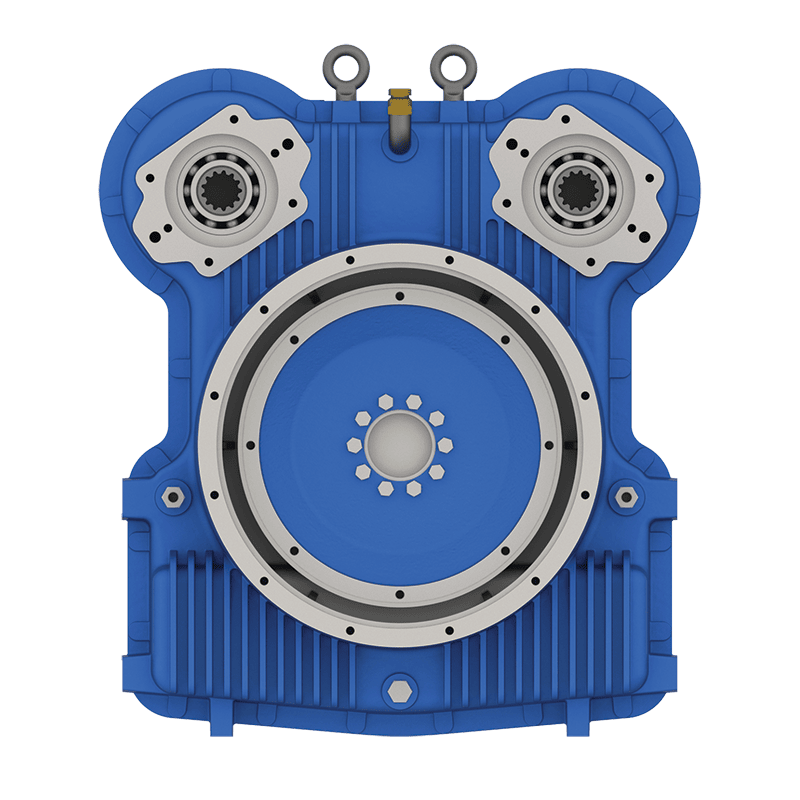

The Gear-Driven Pump Drive is designed to mount to a standard diesel engine flywheel and flywheel housing. It provides multiple SAE pump and motor flange mounts. All models include a flexible coupling on the input. The Pump Drive can be provided with a variety of SAE engine housings, power take-off clutches, and accessories. Larger models feature an optional heat exchanger.
Unit of Measure

Specifications

Brands

 N/A WPT®

SAE Input

 N/A #1-14 in. #3, #2-11-1/2 in.

SAE Output

 N/A #3M-11-1/2 in.

Dimension - A

 N/A 11-1/8 in282.0 mm

Dimension - A at #1 - 1-14 in. SAE Input

 N/A 11-1/8 in282.0 mm

Dimension - B

 N/A 16-5/8 in422.0 mm

Dimension - C

 N/A 12-13/16 in325.0 mm

Dimension - D

 N/A 24-7/16 in620.0 mm

Maximum Input Speed

 N/A 2600 rpm

Maximum Input Torque

 N/A 1475 lbf.ft2000 N·m
Head Power1 N/A 235 hp175 kW

Head Ratio

 N/A 1:1

Weight

 N/A 430 lb195 kg

Optional Accessories

 N/A Head Extension Head PTO Oil Actuated Clutch

Features

Features

 N/A
  • Modular design for greater flexibility
  • Self-contained bearing and spline lubrication
  • Multiple models for design flexibility

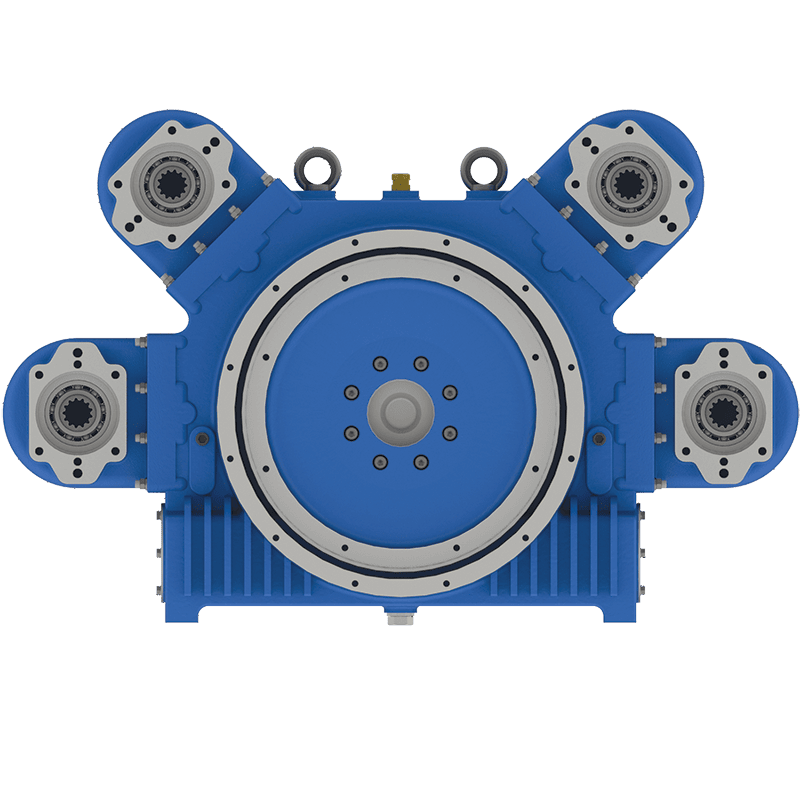

  • Up to eight pump mounting pads available in various SAE pump flange sizes

Note

Note

 N/A Available in SAE B, B-B, C, D, E (spline only)
  • 1 Rated at maximum input speed.
