WPT® Low Inertia Spring-Set (LISS) Brakes are a spring-applied / air-release design well suited for fail-safe applications. The LI Spring Set can also be used as a parking brake since no pressure is required to engage the brake. With adjustable spring release pressures, the LI Spring-Set can provide a range of torques that will suit many applications. WPT®'s Low Inertia Spring-Set Brakes are available in 1, 2, or 3 plate configurations with sizes ranging 6 through 60 inches.
Unit of Measure

Specifications

Brands

 N/A WPT®

Static Torque Rating at 60 Pound Force per Square Inch (lbf/in²) (4.1 bar) Minimum Release Pressure

 N/A 1680000 lbf·in190000 N·m

Static Torque Rating at 75 Pound Force per Square Inch (lbf/in²) (5.2 bar) Minimum Release Pressure

 N/A 2100000 lbf·in237000 N·m

Static Torque Rating at 90 Pound Force per Square Inch (lbf/in²) (6.2 bar) Minimum Release Pressure

 N/A 2530000 lbf·in286000 N·m

Note for Static Torque Rating at Minimum Release Pressure

 N/A Dynamic (slipping) Torque is 75% of the Static Torque.

Maximum Speed Hub and Center Plate (CP)

 N/A 710 rpm

Maximum Slip Speed

 N/A 512 rpm

Lining Area

 N/A 4000 in²26000 cm²

Weight and Inertia

Total Weight

 N/A 7600 lb3400 kg

Hub and Center Plate (CP) Weight

 N/A 1500 lb670 kg

Hub and Center Plate (CP) Inertia

 N/A 2000 lb·ft²82 kg·m²

Dimensions

Minimum Bore Range1 N/A 10.00 in254.0 mm
Maximum Bore Range2 N/A 14.50 in368.3 mm

Dimension - A (Imperial Mounting)

 N/A 56.750 in1441.45 mm

Dimension - A Tolerance (Imperial Mounting)

 N/A +0.000 mm-0.003 mm+0.00 in-0.08 in

Dimension (B) Hole Circle (Imperial Mounting)

 N/A 54.00 in1371.6 mm

Dimension (B) Diameter (Imperial Mounting)

 N/A 1 Inch (in)-8 Normally Closed (NC)

Quantity (Imperial Mounting)

 N/A 24

Dimension - C (Imperial Mounting)

 N/A 52.000 in1220.17 mm

Dimension - C Tolerance (Imperial Mounting)

 N/A +0.00 mm-0.08 mm+0.000 in-0.003 in

Dimension - A (Metric Mounting)

 N/A 1600.00 mm

Dimension - A Tolerance (Metric Mounting)

 N/A +0.00/-0.08 mm

Hole Circle (B) (Metric Mounting)

 N/A 1540.0 mm

Diameter (B) (Metric Mounting)

 N/A 26.0 mm

Quantity (Metric Mounting)

 N/A 24

Dimension - C (Metric Mounting - H7)

 N/A 220.00 mm

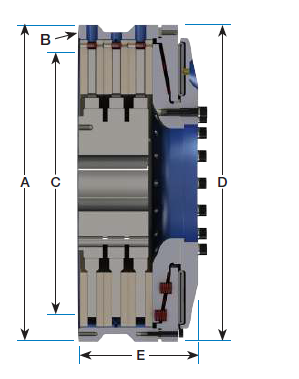

Dimension - D

 N/A 52-1/8 in1324.0 mm

Dimension - E (Ventilated Center Plate)

 N/A 18.38 in466.85 mm

Dimension - E (Ductile Slotted Center Plate)

 N/A 17.69 in449.33 mm

Features

Features

 N/A
  • Available in hydraulic or pneumatic release
  • High cycle life
  • Predictable preventative maintenance
  • Solid, slotted, or ventilated center plate options
  • Available with Full Marine Corrosion Protection package
  • Compatible with the Power Performance LI upgrade
  • Type approval certification available: DNV, ABS, ATEX

Note

Note

 N/A Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.

Shipped without backplate.
  • 1 Contact WPT® for larger bore sizes. Listed bore sizes are for square key.
  • 2 Contact WPT® for larger bore sizes. Listed bore sizes are for square key.
