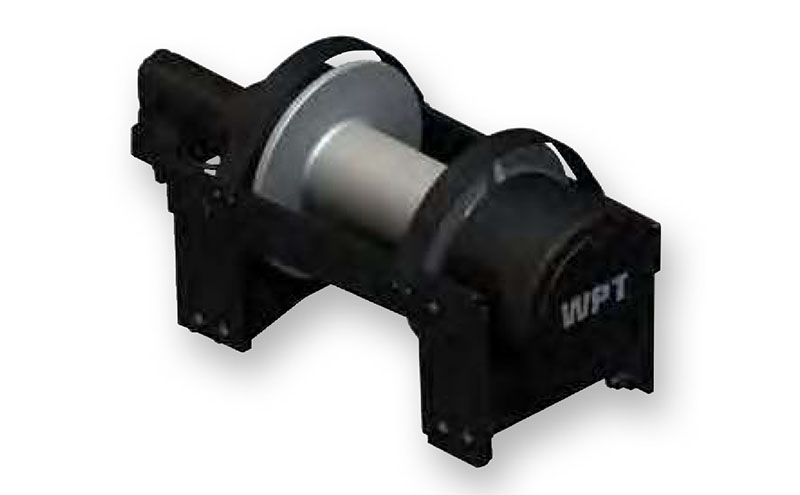

WPT Planetary Hydraulic Winches are designed for efficient performance in towing and recovery, utility, oil & gas, mining, and construction applications. These winches are engineered to SAE J706 standards with working capacities ranging from 6,000 lbf to 130,000 lbf. WPT Planetary Hydraulic Winches provide fast line speed and consistent, powerful pull capacity.
Unit of Measure

Specifications

Brands

 N/A WPT®

Gear Ratio

 N/A 84:1

Weight

 N/A 930 lb420 kg

Hydraulic Motor

Hydraulic Motor Flow

 N/A 25 gal/min95 L/min

Hydraulic Motor Pressure

 N/A 2900 lbf/in²20 MPa

Drum Capacity

Drum Capacity

 N/A 7/8 in224 ft

Cable Length Diameter

 N/A 22 mm68 m

Low Speed

Low Speed Bare Drum Line Pull

 N/A 50000 lbf222 kN

Low Speed Bare Drum Line Speed

 N/A 18 ft/min5.5 m/min

Low Speed Full Drum Line Pull

 N/A 27200 lbf121 kN

Low Speed Full Drum Line Speed

 N/A 33 ft/min10 m/min

High Speed

High Speed Bare Drum Line Pull

 N/A 25000 lbf111 kN

High Speed Bare Drum Line Speed

 N/A 36 ft/min11 m/min

High Speed Full Drum Line Pull

 N/A 13600 lbf61 kN

High Speed Full Drum Line Speed

 N/A 66 ft/min20 m/min

Features

Features

 N/A
  • Efficient two-stage hydraulic planetary design
  • Multiple disc brake is spring-applied and hydraulically released
  • Spring-loaded clutch design disengages for free spooling
  • Air shift operation
