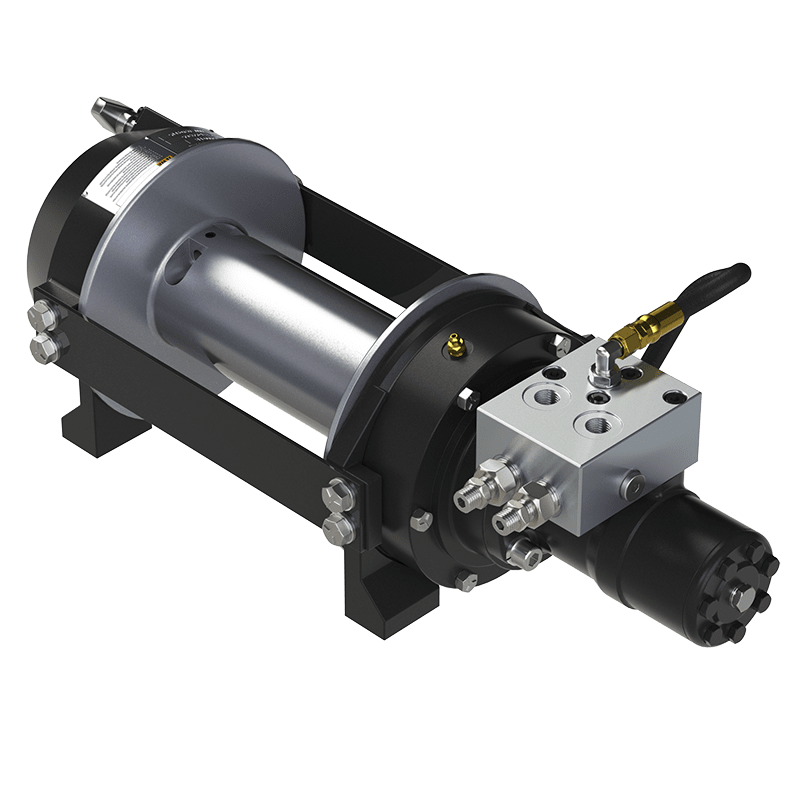

  • Planetary Hydraulic Winches
WPT Planetary Hydraulic Winches are designed for efficient performance in towing and recovery, utility, oil & gas, mining, and construction applications. These winches are engineered to SAE J706 standards with working capacities ranging from 6,000 lbf to 130,000 lbf. WPT Planetary Hydraulic Winches provide fast line speed and consistent, powerful pull capacity.
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Hydraulic Motor Flow

Hydraulic Motor Pressure

Bare Drum Line Pull

Bare Drum Line Speed

N/A 6000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 16 gal/min60 L/min N/A 2300 lbf/in²16 MPa N/A 6000 lbf26.6 kN N/A 67 ft/min20.4 m/min
N/A 9000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 13 gal/min50 L/min N/A 2175 lbf/in²15 MPa N/A 9000 lbf40 kN N/A 33.5 ft/min10.2 m/min
N/A 12000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 16 gal/min60 L/min N/A 2800 lbf/in²19 MPa N/A 12000 lbf53 kN N/A 20 ft/min6 m/min
N/A 15000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 15 gal/min57 L/min N/A 2400 lbf/in²17 MPa N/A 15000 lbf67 kN N/A 25 ft/min7.6 m/min
N/A 23000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 16 gal/min60 L/min N/A 3050 lbf/in²21 MPa N/A 23000 lbf102 kN N/A 20 ft/min6.2 m/min
N/A 23000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 16 gal/min61 L/min N/A 2320 lbf/in²16 MPa N/A 23000 lbf102 kN N/A 20 ft/min6.2 m/min
N/A 30000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 15 gal/min57 L/min N/A 3050 lbf/in²21 MPa N/A 30000 lbf133 kN N/A 19 ft/min5.7 m/min
N/A 33000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 19 gal/min70 L/min N/A 2600 lbf/in²16 MPa N/A 33000 lbf147 kN N/A 10 ft/min3.2 m/min
N/A 35000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 18 gal/min70 L/min N/A 2600 lbf/in²18 MPa N/A 35000 lbf156 kN N/A 18 ft/min5.5 m/min
N/A 35000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 24 gal/min91 L/min N/A 2600 lbf/in²18 MPa N/A 35000 lbf156 kN N/A 17 ft/min5.1 m/min
N/A 45000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 25 gal/min95 L/min N/A 3050 lbf/in²21 MPa N/A 45000 lbf200 kN N/A 23 ft/min7 m/min
N/A 50000 Pound Foot (lbf) Low Speed Bare Drum Line Pull Planetary Hydraulic Winch N/A 25 gal/min95 L/min N/A 2900 lbf/in²20 MPa N/A N/A
N/A 55000 Pound Foot (lbf) Bare Drum Line Pull Planetary Hydraulic Winch N/A 14 gal/min53 L/min N/A 3000 lbf/in²21 MPa N/A 55000 lbf245 kN N/A 9.8 ft/min3 m/min
N/A 130000 Pound Foot (lbf) Low Speed Bare Drum Line Pull Planetary Hydraulic Winch N/A 60 gal/min230 L/min N/A 2500 lbf/in²18 MPa N/A N/A
