WPT® Power Grip High Speed Clutches are designed to withstand severe applications mounted to internal combustion engines. The drive rings will fit standard SAE industrial flywheels. The power grip's heavy-duty gear tooth friction discs are designed to withstand heavy shock loads and torsional vibrations.
Unit of Measure

Specifications

Brands

 N/A WPT®
Maximum Input Torque1 N/A 7100 lbf.ft9630 N·m

Maximum Speed

 N/A 2100 rpm

Lining Area

 N/A 780 in²5050 cm²

Ring Type

 N/A A

Dimension - A Tolerance

 N/A +0.003 in-0.005 in+0.00 mm-0.13 mm

Quantity

 N/A 6

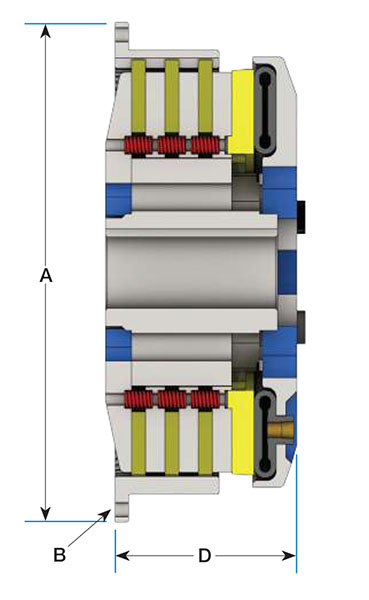

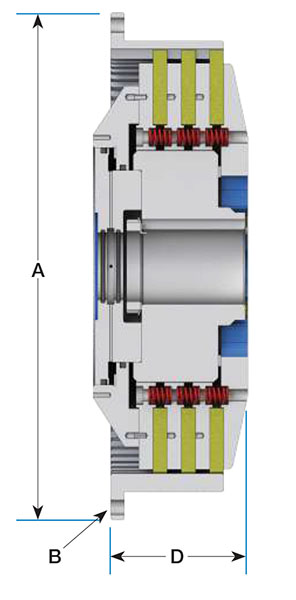

Dimensions

Dimension - A

 N/A 22.498 in571.45 mm

Hole Circle (B)

 N/A 21.38 in542.9 mm

Diameter (B)

 N/A 21/32 in16.7 mm

Dimension - C

 N/A 8-3/4 in222.3 mm

Dimension - D

 N/A 6 in153.2 mm

Features

Features

 N/A
  • Coil springs standard
  • Available pneumatic or hydraulic actuation
  • Heavy-duty gear tooth friction disc

Note

Note

 N/A Consult WPT® Application Engineering for application assistance and applicable service factors.
Larger bore sizes may be accommodated, consult WPT® Application Engineering.
Dynamic torque is 75% of static torque.
  • 1 Pneumatic actuation at 100 PSI. Hydraulic actuation at 500 PSI.
