  • Power Grip High Speed Clutches

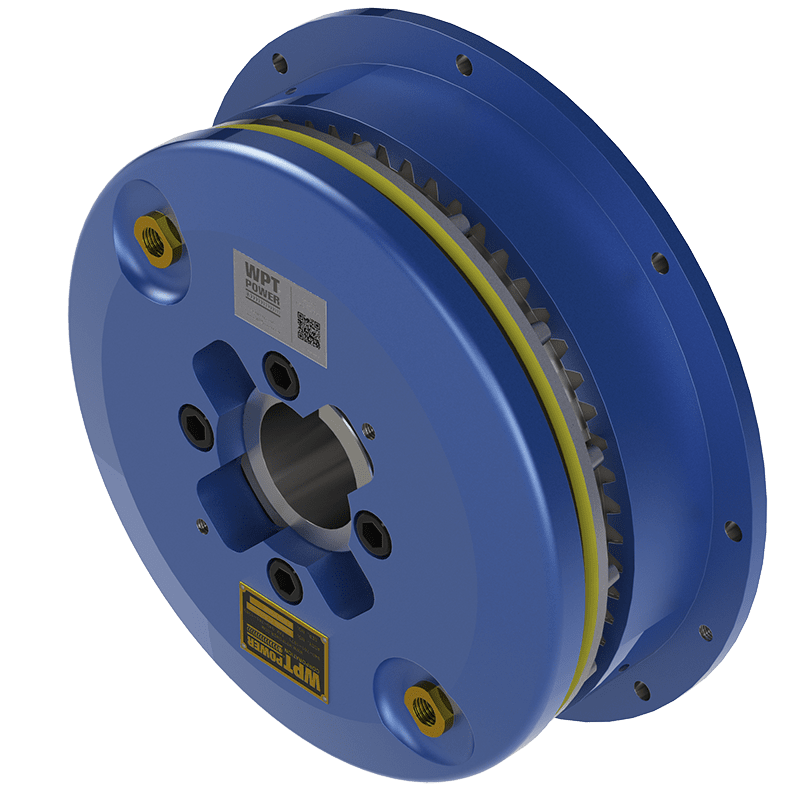

WPT® Power Grip High Speed Clutches are designed to withstand severe applications mounted to internal combustion engines. The drive rings will fit standard SAE industrial flywheels. The power grip's heavy-duty gear tooth friction discs are designed to withstand heavy shock loads and torsional vibrations.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Maximum Input Torque

Maximum Speed

Lining Area

Dimension - A

N/A 881 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 650 lbf.ft881 N·m N/A 2500 rpm N/A 110 in²730 cm² N/A 13.875 in352.43 mm
N/A 1760 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 1300 lbf.ft1760 N·m N/A 2500 rpm N/A 230 in²1460 cm² N/A 13.875 in352.43 mm
N/A 2580 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 1900 lbf.ft2580 N·m N/A 2500 rpm N/A 340 in²2190 cm² N/A 13.875 in352.43 mm
N/A 1630 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 1200 lbf.ft1630 N·m N/A 2300 rpm N/A 160 in²1020 cm² N/A 18.375 in466.73 mm
N/A 3390 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 2500 lbf.ft3390 N·m N/A 2300 rpm N/A 320 in²2050 cm² N/A 18.375 in466.73 mm
N/A 5150 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 3800 lbf.ft5150 N·m N/A 2300 rpm N/A 480 in²3070 cm² N/A 18.375 in466.73 mm
N/A 9630 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 7100 lbf.ft9630 N·m N/A 2100 rpm N/A 780 in²5050 cm² N/A 22.498 in571.45 mm
N/A 18300 Newton Meter (N·m) Maximum Torque Power Grip High Speed Clutch N/A 13,500 lbf.ft18300 N·m N/A 1800 rpm N/A 1100 in²6960 cm² N/A 26.500 in673.10 mm
