Brands |
N/A WPT® |
SAE Housings |
N/A 0 |

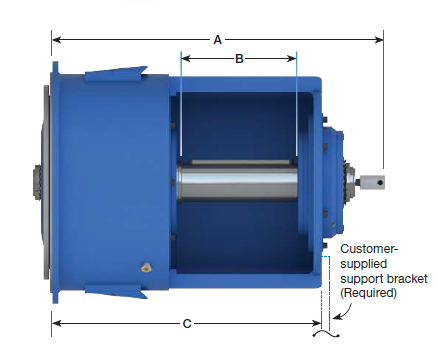

Dimension - A |
N/A 44 5/8 in1133.5 mm |
Dimension - B |
N/A 19 15/16 in506.4 mm |
Diameter |
N/A 4.750 in120.65 mm |
Keyway |
N/A 1-1/4 x 5/8 in |
Dimension - C |
N/A 39 3/4 in1009.7 mm |
Maximum Diameter |
N/A 23 in584.2 mm |
Maximum Width |
N/A 22 in558.8 mm |
Distance - X |
N/A 28 in32 in711 mm813 mm |
Allowable Sideload at 28 Inch (in) and 711 Millimetre (mm) Distance |
N/A 28,800 lbf31,700 lbf13100 kgf14400 kgf |
Allowable Sideload at 32 Inch (in) and 813 Millimetre (mm) Distance |
N/A 22,200 lbf24,400 lbf10100 kgf11100 kgf |
Maximum Input Torque |
N/A 13,500 lbf.ft18300 N.m |
Maximum Speed |
N/A 1800 rpm |
Additional Information |
N/A
The Type 1 PTO is one of the most rugged, highest capacity products available on the market today. With the sheave mounted between the bearings, these power take-offs are designed to attain the maximum potential of their massive spherical roller bearings. Some benefits of the WPT® Type 1 include: Potential for remote engagement, self-adjusting clutch, air or hydraulic actuation, heavy-duty gear tooth friction discs and easy drive belt removal. Gen II Type 1 PTO’s make it possible to house mechanical, hydraulic or pneumatic clutch pack. In addition, the sheave housing is designed with internal and external pilots, vastly improving the quality and ease of field repairs while increasing uptime. |
