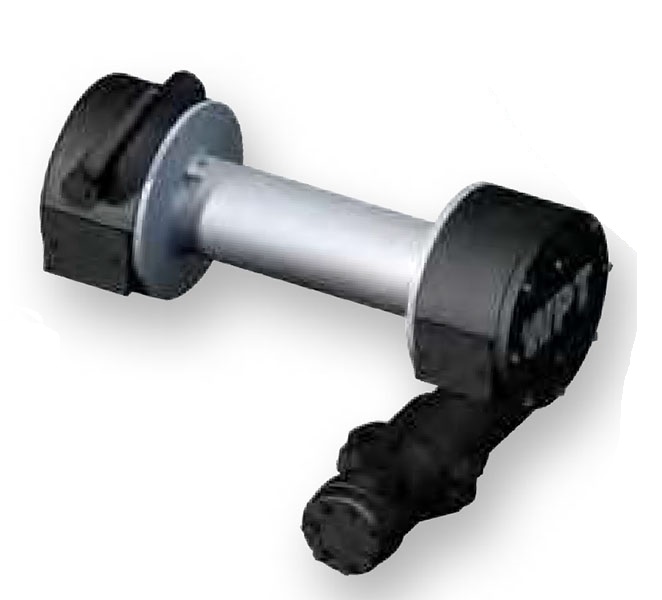

The Worm Gear Winch is available in hydraulic or electric operation. These small but mighty units are well-suited for applications in the towing and recovery, utility, oil and gas, crane, and construction markets. The extremely strong cast aluminum housings make these winches rugged and lightweight.
Unit of Measure

Specifications

Brands

 N/A WPT®

Gear Ratio

 N/A 60:1

Weight

 N/A 78 lb35 kg

Hydraulic Motor

Hydraulic Motor Flow

 N/A 16 gal/min60 L/min

Hydraulic Motor Pressure

 N/A 2000 lbf/in²14 MPa

Bare Drum

Bare Drum Line Pull

 N/A 11000 lbf49 kN

Bare Drum Line Speed

 N/A 15.5 ft/min4.8 m/min

Full Drum

Full Drum Line Pull

 N/A 6600 lbf26 kN

Full Drum Line Speed

 N/A 24 ft/min7.2 m/min

Drum Capacity

Drum Capacity

 N/A 3/8 in135 ft

Cable Length Diameter

 N/A 10 mm41 m

Features

Features

 N/A
  • Robust worm gear design that holds the load even if the power fails or is interrupted
  • Lever actuated clutch allows cable to be unspooled rapidly
  • A rugged cast ductile or steel drum that withstands high impact loads and cable wear
  • Cast aluminum worm and clutch housing and cover making it extremely strong and lightweight
  • Air shift operation allows for remote shifting capabilities
