  • Worm Gear Hydraulic Winches

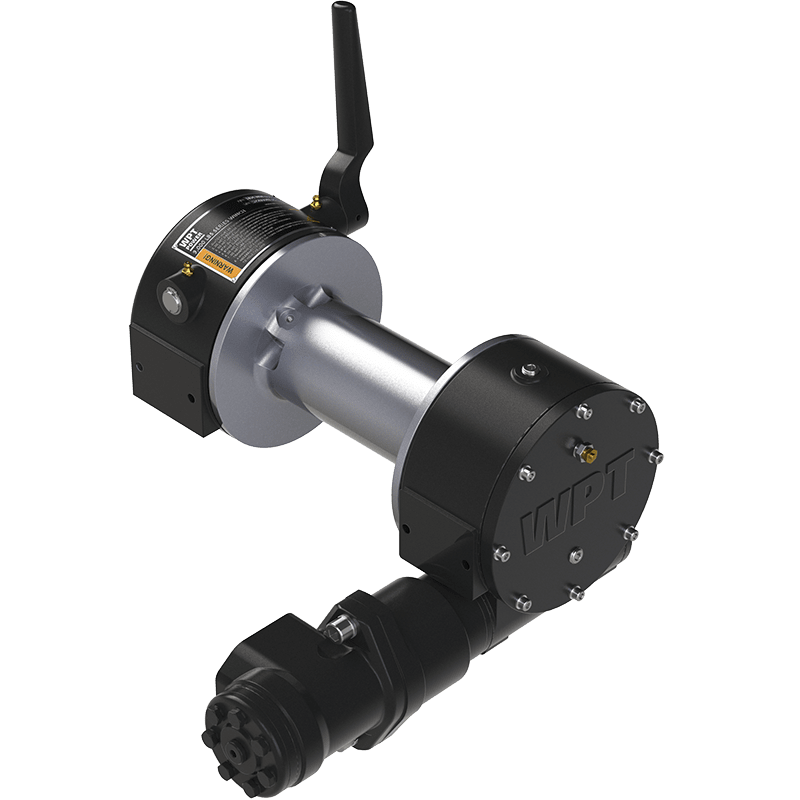

The Worm Gear Winch is available in hydraulic or electric operation. These small but mighty units are well-suited for applications in the towing and recovery, utility, oil and gas, crane, and construction markets. The extremely strong cast aluminum housings make these winches rugged and lightweight.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Hydraulic Motor Flow

Hydraulic Motor Pressure

Bare Drum Line Pull

Bare Drum Line Speed

N/A 2000 Pound Force (lbf) Bare Drum Line Pull Worm Gear Hydraulic Winch N/A 16 gal/min60 L/min N/A 2000 lbf/in²14 MPa N/A 2000 lbf14 kN N/A 13 ft/min4.1 m/min
N/A 9000 Pound Force (lbf) Bare Drum Line Pull Worm Gear Hydraulic Winch N/A 16 gal/min60 L/min N/A 2000 lbf/in²14 MPa N/A 9000 lbf40 kN N/A 12 ft/min3.5 m/min
N/A 11000 Pound Force (lbf) Bare Drum Line Pull Worm Gear Hydraulic Winch N/A 16 gal/min60 L/min N/A 2000 lbf/in²14 MPa N/A 11000 lbf49 kN N/A 12 ft/min3.8 m/min
N/A 11000 Pound Force (lbf) Bare Drum Line Pull Worm Gear Hydraulic Winch N/A 16 gal/min60 L/min N/A 2000 lbf/in²14 MPa N/A 11000 lbf49 kN N/A 15.5 ft/min4.8 m/min
N/A 20000 Pound Force (lbf) Bare Drum Line Pull Worm Gear Hydraulic Winch N/A 18 gal/min68 L/min N/A 2300 lbf/in²16 MPa N/A 20000 lbf89 kN N/A 22 ft/min6.7 m/min
N/A 9000 Pound Force (lbf) Bare Drum Line Pull Worm Gear Electric Winch N/A N/A N/A 9000 lbf40 kN N/A 14 ft/min4.3 m/min
