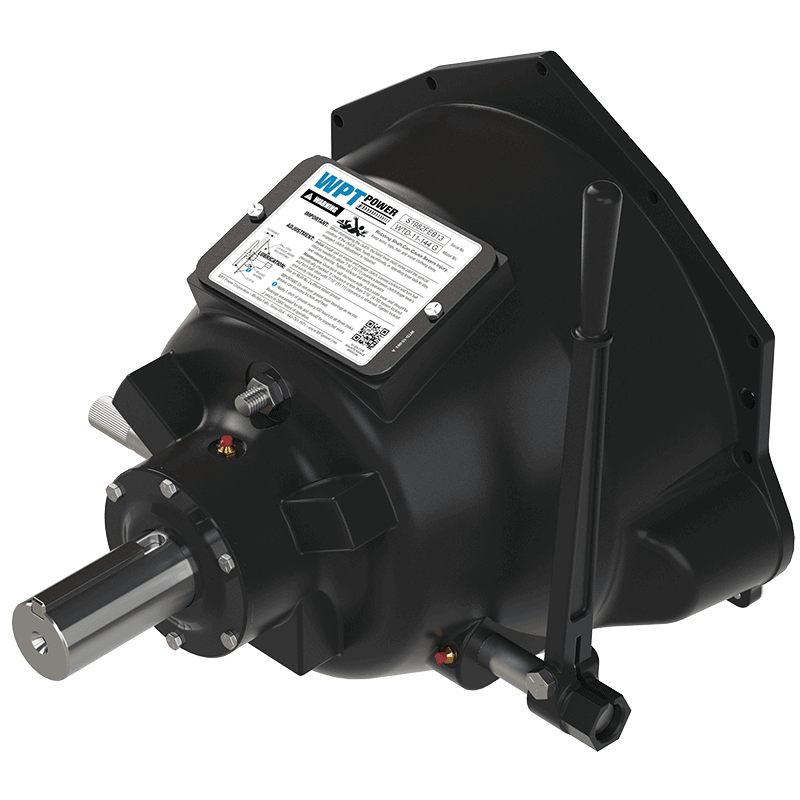

The GM® Style PTO mounts directly to GM® engines without any adaptations to the engine or PTO. Eliminating the pilot bearing and utilizing sealed main bearings reduces maintenance time and costs. External heavy-duty ball screw with a jam nut makes adjustments for wear quick and easy.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Output Shaft Diameter

Output Shaft Keyway Size

Maximum Input Torque

Maximum Speed

N/A 1.750 Inch (in) Output Shaft Diameter GM®-Style Power Take-Off (PTO) Unit N/A 1.750 in44.45 mm N/A 3/8 x 3/16 in N/A 386 lb·ft523 N·m N/A 3400 rpm
N/A 2.250 Inch (in) Output Shaft Diameter GM®-Style Power Take-Off (PTO) Unit N/A 2.250 in57.15 mm N/A 1/2 x 1/4 in N/A 386 lb·ft523 N·m N/A 3400 rpm
