The Industrial Caliper Brake and Rotor are well-suited for applications that require a dependable, low-maintenance solution. The ductile iron saddle-frame design and anti-stress load transfer system work together to maximize equipment productivity. Lever-operated, adjustable, air-set actuators require minimal pressure while providing precise control.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1

Item #

Item Name

Maximum Volume per Actuation

Total Clamping Force

Total Lining Area

Maximum Lining Wear

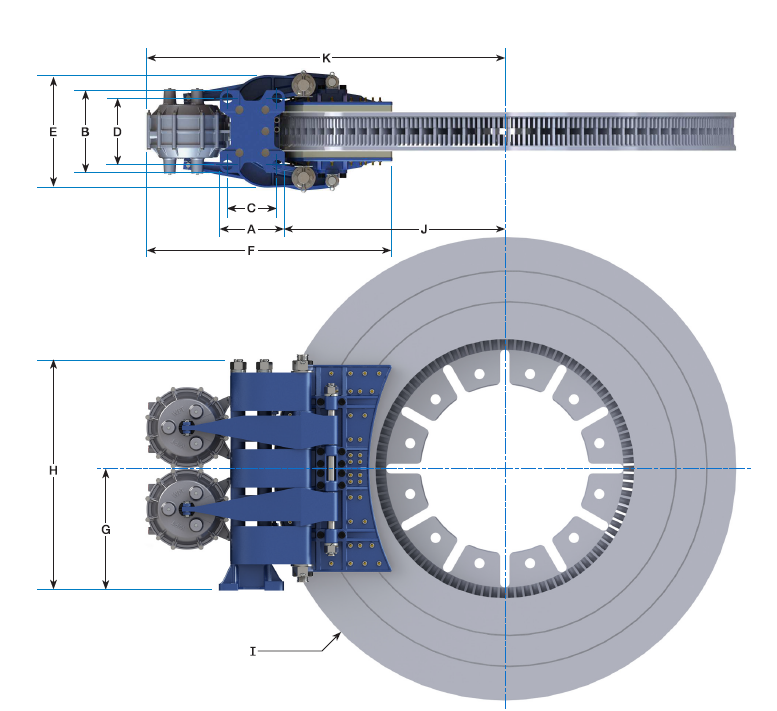

N/A 6-1/4 Inch (in) Caliper Dimensions - A Industrial Caliper Disc Brake N/A 110 in³1820 cm³ N/A 31800 lbf141500 N N/A 200 in²1290 cm² N/A 0.35 in9 mm
N/A 6-13/16 Inch (in) Caliper Dimensions - A Industrial Caliper Disc Brake N/A 180 in³2950 cm³ N/A 48000 lbf213600 N N/A 415 in²2677 cm² N/A 0.38 in10 mm
