Low Inertia Clutches On WPT Power Corporation

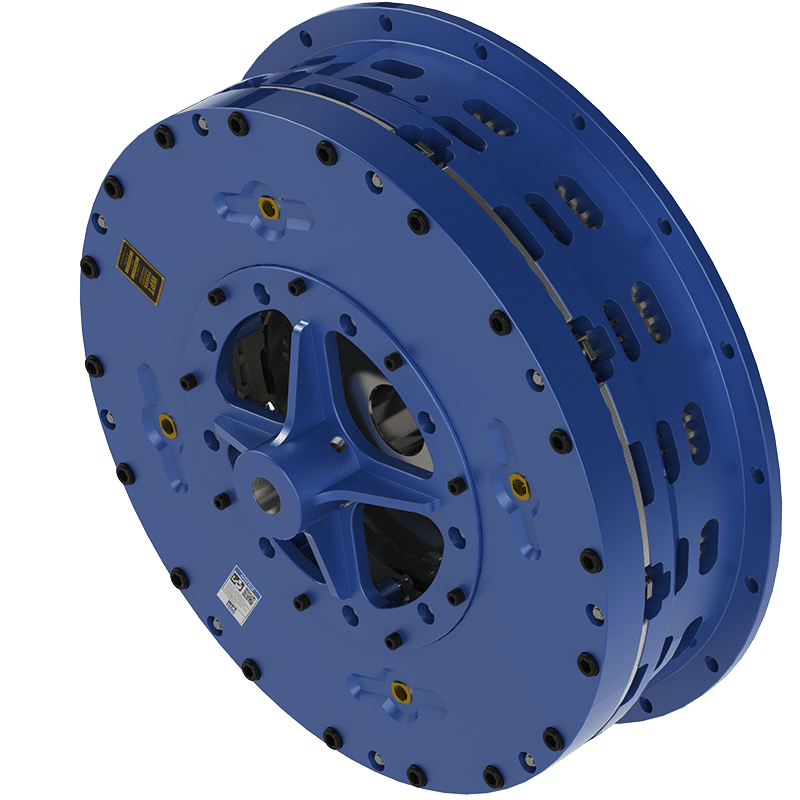

The Low Inertia Clutch (LIC) is well-suited for high-cycle applications, such as steel shears and stamping presses. The LIC design reduces the rotational mass during starts and stops, allowing for increased cycles per minute and reduced deceleration times. This advantage also lends to reduced heat generation.

Item #	Item Name	Maximum Speed Complete Clutch	Maximum Speed Hub and Center Plate	Maximum Slip Speed	Lining Area
106	N/A 4520 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 3930 rpm	N/A 5290 rpm	N/A 3530 rpm	N/A 39 in²250 cm²
206	N/A 9030 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 3930 rpm	N/A 5290 rpm	N/A 3530 rpm	N/A 78 in²500 cm²
108	N/A 7480 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 2840 rpm	N/A 4300 rpm	N/A 2870 rpm	N/A 55 in²360 cm²
208	N/A 15000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 2840 rpm	N/A 4300 rpm	N/A 2870 rpm	N/A 110 in²710 cm²
111	N/A 16800 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 2150 rpm	N/A 3130 rpm	N/A 2090 rpm	N/A 110 in²730 cm²
211-LIC	N/A 33600 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 2150 rpm	N/A 3130 rpm	N/A 2090 rpm	N/A 230 in²1500 cm²
311-LIC	N/A 50300 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 2150 rpm	N/A 3130 rpm	N/A 2090 rpm	N/A 340 in²2200 cm²
114	N/A 28300 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1840 rpm	N/A 2460 rpm	N/A 1640 rpm	N/A 170 in²1100 cm²
214-LIC	N/A 56500 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1840 rpm	N/A 2460 rpm	N/A 1640 rpm	N/A 330 in²2100 cm²
314	N/A 84800 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1840 rpm	N/A 2460 rpm	N/A 1640 rpm	N/A 500 in²3200 cm²
116	N/A 38900 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1620 rpm	N/A 2150 rpm	N/A 1440 rpm	N/A 230 in²1500 cm²
216	N/A 77700 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1620 rpm	N/A 2150 rpm	N/A 1440 rpm	N/A 460 in²2900 cm²
316	N/A 117000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1620 rpm	N/A 2150 rpm	N/A 1440 rpm	N/A 680 in²4400 cm²
118	N/A 64900 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1480 rpm	N/A 1950 rpm	N/A 1300 rpm	N/A 240 in²1600 cm²
218-LIC	N/A 130000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1480 rpm	N/A 1910 rpm	N/A 1280 rpm	N/A 520 in²3300 cm²
318-LIC	N/A 195000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1480 rpm	N/A 1950 rpm	N/A 1300 rpm	N/A 720 in²4600 cm²
121	N/A 93300 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1280 rpm	N/A 1640 rpm	N/A 1100 rpm	N/A 360 in²2300 cm²
221	N/A 187000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1280 rpm	N/A 1640 rpm	N/A 1100 rpm	N/A 720 in²4600 cm²
321-LIC	N/A 280000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1280 rpm	N/A 1680 rpm	N/A 1120 rpm	N/A 980 in²6300 cm²
124H	N/A 165000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1150 rpm	N/A 1430 rpm	N/A 955 rpm	N/A 580 in²3700 cm²
224H-LIC	N/A 330000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1150 rpm	N/A 1430 rpm	N/A 955 rpm	N/A 1200 in²7400 cm²
324H-LIC	N/A 495000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1150 rpm	N/A 1430 rpm	N/A 955 rpm	N/A 1700 in²11000 cm²
227	N/A 371000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1050 rpm	N/A 1270 rpm	N/A 850 rpm	N/A 1500 in²9400 cm²
327	N/A 556000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 1050 rpm	N/A 1270 rpm	N/A 850 rpm	N/A 2200 in²14000 cm²
230H-LIC	N/A 692000 Pound Force Inch (lbf·in) Static Torque at 100 Pounds per Square Inch (psi) Pressure Low Inertia Clutch	N/A 930 rpm	N/A 1150 rpm	N/A 770 rpm	N/A 1700 in²11000 cm²
