  • Mining Brakes

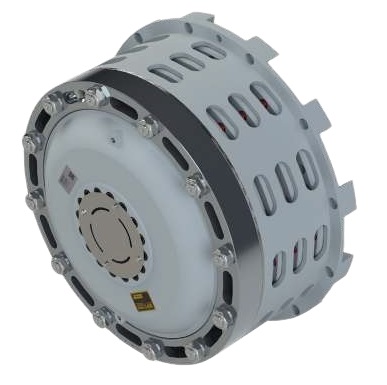

The Mining Brake is a spring-applied, air-released design specifically for heavy-duty earthmoving equipment, such as rope shovels and draglines. These brake units feature pneumatic operation, have a variety of torque capacities and pressure settings, and can dissipate large thermal loads. Multiple hub options provide installation flexibility. Optional limit switches and wear indicators are available.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Static Torque at 60 Pounds per Square Inch (psi) (4.1 Bar) Pressure

Drive Plate Inertia

Lining Area

Dimension - A

N/A 2450 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 21700 lbf.in2450 N.m N/A 2.6 lb·ft²0.11 kg·m² N/A 90 in²580 cm² N/A 18.872 in479.35 mm
N/A 5030 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 44500 lbf.in5030 N.m N/A 8.5 lb·ft²0.36 kg·m² N/A 134 in²870 cm² N/A 23.995 in609.47 mm
N/A 9290 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 82200 lbf.in9290 N.m N/A 16 lb·ft²0.66 kg·m² N/A 270 in²1700 cm² N/A 23.995 in609.47 mm
N/A 9800 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 86700 lbf.in9800 N.m N/A 17 lb·ft²0.73 kg·m² N/A 200 in²1300 cm² N/A 28.245 in717.42 mm
N/A 17900 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 158000 lbf.in17900 N.m N/A 35 lb·ft²1.5 kg·m² N/A 400 in²2600 cm² N/A 28.245 in717.42 mm
N/A 24000 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 212000 lbf.in24000 N.m N/A 55 lb·ft²2.3 kg·m² N/A 600 in²3900 cm² N/A 28.245 in717.42 mm
N/A 31400 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 278000 lbf.in31400 N.m N/A 89 lb·ft²3.8 kg·m² N/A 540 in²3500 cm² N/A 32.495 in825.37 mm
N/A 43600 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 386000 lbf.in43600 N.m N/A 130 lb·ft²5.4 kg·m² N/A 810 in²5200 cm² N/A 32.495 in825.37 mm
N/A 30700 Newton Meter (N·m) Static Torque at 60 Pounds per Square Inch (psi) Pressure Mining Brake N/A 272000 lbf.in30700 N.m N/A 84 lb·ft²3.5 kg·m² N/A 340 in²2200 cm² N/A 38.995 in990.47 mm
