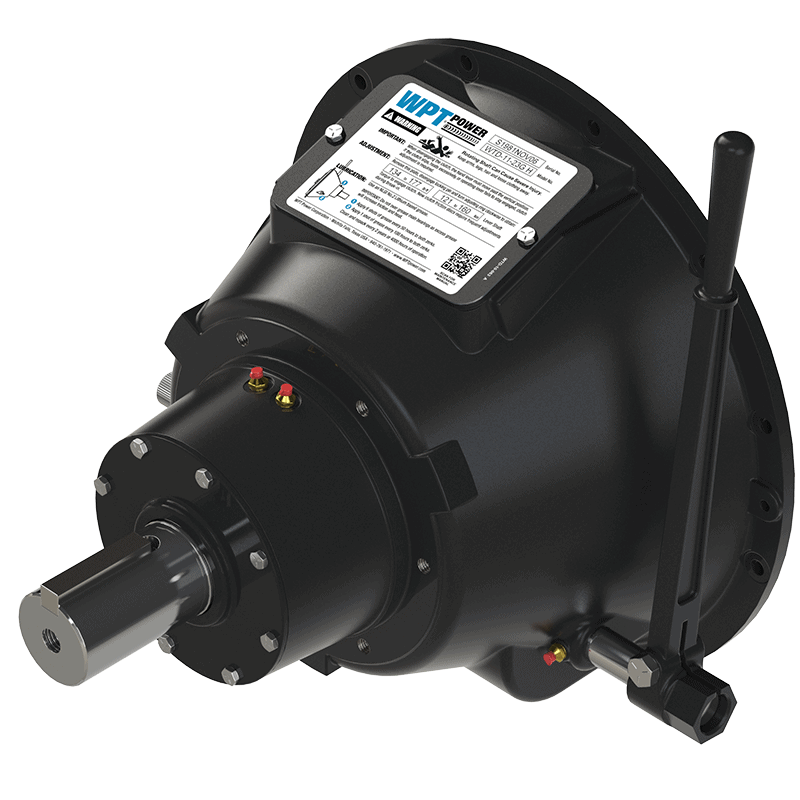

  • Pilotless® Mechanical Power Take-Off (PTO) Units
The WPT® Pilotless® Mechanical Power Take-Off is the solution with proven field performance in heavy-duty applications. Customers require a durable product that is tough enough to meet the high demands of wood chippers, rock crushers, asphalt grinders, pavement milling machines, water blasters, irrigation pumps, paver units and other industrial and construction applications.

The Pilotless® Mechanical is the next evolution in over-center Power Take-Offs (PTOs). The unique design eliminates the pilot bearing and increases side load capacity. The Pilotless® Mechanical PTO will optimize your cost by reducing inventory, increasing uptime and engine life, and simplifying installation.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

SAE Housings

Dimension - A

Dimension - B

Output Shaft Diameter

N/A Pilotless® 232 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 4 5 N/A 8-7/16 in214.6 mm N/A 2-1/8 in55.4 mm N/A 1.438 in36.53 mm
N/A Pilotless® 259 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 4 5 N/A 8-7/16 in214.6 mm N/A 2-1/8 in55.4 mm N/A 1.438 in36.53 mm
N/A Pilotless® 336 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 4 N/A 8-3/8 in213.4 mm N/A 4-5/8 in118.4 mm N/A 1.750 in44.45 mm
N/A Pilotless® 481 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 3 4 N/A 9-3/4 in248.4 mm N/A 3-15/16 in100.1 mm N/A 2.250 in57.15 mm
N/A Pilotless® 660 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 3 N/A 11-7/16 in291.7 mm N/A 4-1/16 in102.6 mm N/A 2.250 in57.15 mm
N/A Pilotless® 1321 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 2 3 N/A 12-9/16 in320 mm N/A 3-5/8 in92.5 mm N/A 2.500 in63.5 mm
N/A Pilotless® 2367 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 2 3 N/A 15-3/4 in400.8 mm N/A 8 in204 mm N/A 3.500 in88.9 mm
N/A Pilotless® 1169 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 1 N/A 13-5/8 in346.2 mm N/A 5-1/8 in130.6 mm N/A 3.000 in76.2 mm
N/A Pilotless® 2337 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 0 1 N/A 16-3/16 in411.5 mm N/A 7-1/2 in191.8 mm N/A 3.500 in88.9 mm
N/A Pilotless® 3506 Newton Meter (N·m) Maximum Input Torque Mechanical Power Take-Off (PTO) Unit N/A 0 1 N/A 17-1/16 in433.1 mm N/A 7-1/2 in190.5 mm N/A 3.938 in100.01 mm
