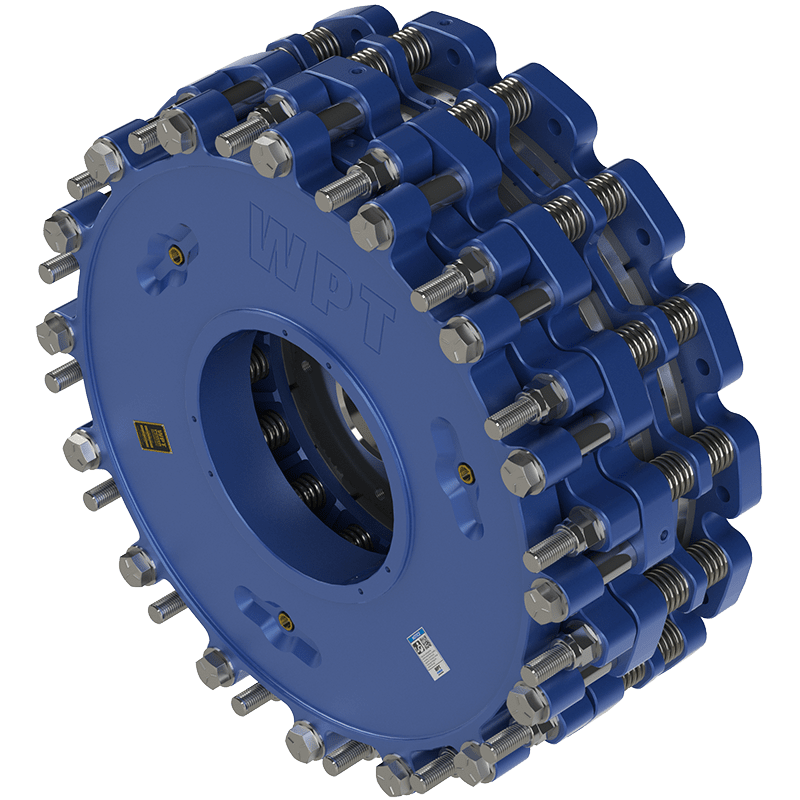

  • Pin Drive Spring Set Brakes

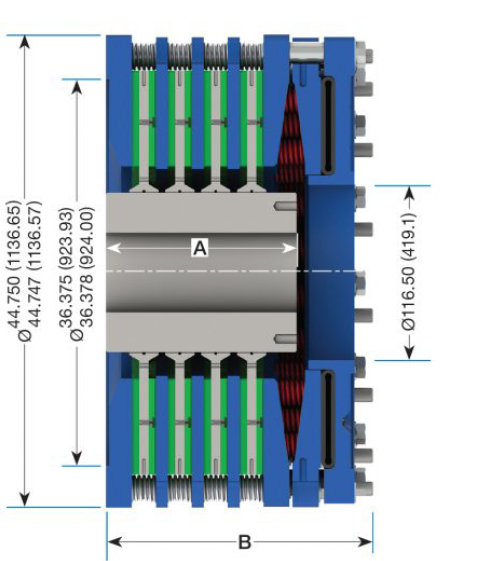

  • Pin Drive Spring Set Brakes - 2
The Pin Drive is a low inertia spring-set design that is well-suited for high-energy applications. The radial stud arrangement has multiple plate configurations while allowing for quick and smooth operation. The fail-safe actuator design provides high torque stopping and parking options.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Static Torque Rating at 100 Pounds Per Square Inch (psi) Pressure

Dynamic Torque Rating at 100 Pounds Per Square Inch (psi) Pressure

Maximum Speed

Hub and Center Plate (CP) Inertia

N/A 9 Inch (in) Dimension - A Pin Drive Spring Set Brake N/A 1418600 lbf·in160300 N·m N/A 1063900 lbf·in120200 N·m N/A 950 rpm N/A 1090 lbf.ft²45.8 kg·m²
N/A 12 Inch (in) Dimension - A Pin Drive Spring Set Brake N/A 2078500 lbf·in234900 N·m N/A 1558900 lbf·in176100 N·m N/A 950 rpm N/A 1630 lbf.ft²68.8 kg·m²
N/A 18 Inch (in) Dimension - A Pin Drive Spring Set Brake N/A 2669900 lbf·in301700 N·m N/A 2002400 lbf·in226300 N·m N/A 950 rpm N/A 2170 lbf.ft²91.5 kg·m²
