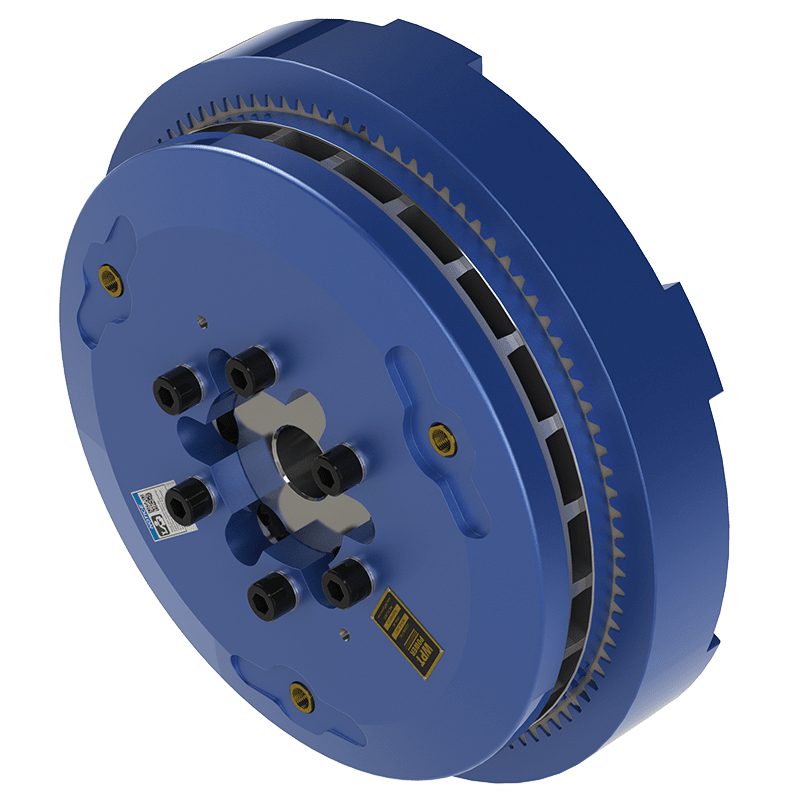

Power Grip Clutches On WPT Power Corporation

The Power Grip Clutch is designed to accommodate in-line and shaft-to-shaft power transmission applications with large inertia loads. Multiple actuator designs allow seamless, controlled engagement and disengagement. Power Grip clutches allow for quick response, space-saving footprints, and minimal maintenance requirements.

Item #	Item Name	Maximum Speed	Maximum Slip Speed	Total Inertia	Lining Area
108-PGC	N/A 854 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 3600 rpm	N/A 2860 rpm	N/A 2.4 lb·ft²0.1 kg·m²	N/A 55 in²355 cm²
208-PGC	N/A 1660 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 3600 rpm	N/A 2860 rpm	N/A 4.3 lb·ft²0.18 kg·m²	N/A 110 in²711 cm²
308	N/A 2410 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 3600 rpm	N/A 2860 rpm	N/A 6 lb·ft²0.25 kg·m²	N/A 170 in²1070 cm²
111-PGC	N/A 1920 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 2650 rpm	N/A 2080 rpm	N/A 9.2 lb·ft²0.39 kg·m²	N/A 110 in²730 cm²
211-PGC	N/A 3760 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 2650 rpm	N/A 2080 rpm	N/A 16 lb·ft²0.69 kg·m²	N/A 230 in²1460 cm²
311-PGC	N/A 5500 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 2650 rpm	N/A 2080 rpm	N/A 23 lb·ft²0.97 kg·m²	N/A 340 in²2190 cm²
114H-PGC	N/A 4020 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 2180 rpm	N/A 1640 rpm	N/A 41 lb·ft²1.7 kg·m²	N/A 170 in²1070 cm²
214H-PGC	N/A 7880 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 2180 rpm	N/A 1640 rpm	N/A 57 lb·ft²2.4 kg·m²	N/A 330 in²2140 cm²
314H-PGC	N/A 11500 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 2180 rpm	N/A 1640 rpm	N/A 80 lb·ft²3.4 kg·m²	N/A 500 in²3220 cm²
216-PGC	N/A 9010 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1900 rpm	N/A 1430 rpm	N/A 88 lb·ft²3.7 kg·m²	N/A 460 in²2940 cm²
316-PGC	N/A 13200 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1900 rpm	N/A 1430 rpm	N/A 120 lb·ft²4.9 kg·m²	N/A 680 in²4410 cm²
218-PGC	N/A 14700 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1750 rpm	N/A 1270 rpm	N/A 140 lb·ft²6.0 kg·m²	N/A 520 in²3340 cm²
318-PGC	N/A 21600 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1750 rpm	N/A 1270 rpm	N/A 190 lb·ft²8.0 kg·m²	N/A 780 in²5010 cm²
118H	N/A 9270 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1750 rpm	N/A 1270 rpm	N/A 100 lb·ft²4.2 kg·m²	N/A 260 in²1670 cm²
218H	N/A 18200 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1750 rpm	N/A 1270 rpm	N/A 150 lb·ft²6.4 kg·m²	N/A 520 in²3340 cm²
318H	N/A 26900 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1750 rpm	N/A 1270 rpm	N/A 200 lb·ft²8.4 kg·m²	N/A 780 in²5010 cm²
221-PGC	N/A 21400 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1530 rpm	N/A 1090 rpm	N/A 280 lb·ft²12 kg·m²	N/A 720 in²4640 cm²
321-PGC	N/A 31500 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1530 rpm	N/A 1090 rpm	N/A 380 lb·ft²16 kg·m²	N/A 1100 in²6960 cm²
124H-PGC	N/A 18900 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1350 rpm	N/A 950 rpm	N/A 370 lb·ft²16 kg·m²	N/A 570 in²3710 cm²
224H-PGC	N/A 37300 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1350 rpm	N/A 950 rpm	N/A 510 lb·ft²22 kg·m²	N/A 1100 in²7410 cm²
324H-PGC	N/A 55100 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1350 rpm	N/A 950 rpm	N/A 620 lb·ft²26 kg·m²	N/A 1700 in²11100 cm²
124SHD	N/A 23400 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1350 rpm	N/A 950 rpm	N/A 380 lb·ft²16 kg·m²	N/A 570 in²3710 cm²
224SHD	N/A 46700 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1350 rpm	N/A 950 rpm	N/A 520 lb·ft²22 kg·m²	N/A 1100 in²7410 cm²
324SHD	N/A 70100 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1350 rpm	N/A 950 rpm	N/A 630 lb·ft²27 kg·m²	N/A 1700 in²11100 cm²
227-PGC	N/A 41800 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch	N/A 1200 rpm	N/A 850 rpm	N/A 700 lb·ft²29 kg·m²	N/A 1500 in²9430 cm²

108-PGC

N/A 854 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 3600 rpm

N/A 2860 rpm

N/A 2.4 lb·ft²0.1 kg·m²

N/A 55 in²355 cm²

208-PGC

N/A 1660 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 3600 rpm

N/A 2860 rpm

N/A 4.3 lb·ft²0.18 kg·m²

N/A 110 in²711 cm²

308

N/A 2410 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 3600 rpm

N/A 2860 rpm

N/A 6 lb·ft²0.25 kg·m²

N/A 170 in²1070 cm²

111-PGC

N/A 1920 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 2650 rpm

N/A 2080 rpm

N/A 9.2 lb·ft²0.39 kg·m²

N/A 110 in²730 cm²

211-PGC

N/A 3760 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 2650 rpm

N/A 2080 rpm

N/A 16 lb·ft²0.69 kg·m²

N/A 230 in²1460 cm²

311-PGC

N/A 5500 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 2650 rpm

N/A 2080 rpm

N/A 23 lb·ft²0.97 kg·m²

N/A 340 in²2190 cm²

114H-PGC

N/A 4020 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 2180 rpm

N/A 1640 rpm

N/A 41 lb·ft²1.7 kg·m²

N/A 170 in²1070 cm²

214H-PGC

N/A 7880 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 2180 rpm

N/A 1640 rpm

N/A 57 lb·ft²2.4 kg·m²

N/A 330 in²2140 cm²

314H-PGC

N/A 11500 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 2180 rpm

N/A 1640 rpm

N/A 80 lb·ft²3.4 kg·m²

N/A 500 in²3220 cm²

216-PGC

N/A 9010 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1900 rpm

N/A 1430 rpm

N/A 88 lb·ft²3.7 kg·m²

N/A 460 in²2940 cm²

316-PGC

N/A 13200 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1900 rpm

N/A 1430 rpm

N/A 120 lb·ft²4.9 kg·m²

N/A 680 in²4410 cm²

218-PGC

N/A 14700 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1750 rpm

N/A 1270 rpm

N/A 140 lb·ft²6.0 kg·m²

N/A 520 in²3340 cm²

318-PGC

N/A 21600 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1750 rpm

N/A 1270 rpm

N/A 190 lb·ft²8.0 kg·m²

N/A 780 in²5010 cm²

118H

N/A 9270 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1750 rpm

N/A 1270 rpm

N/A 100 lb·ft²4.2 kg·m²

N/A 260 in²1670 cm²

218H

N/A 18200 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1750 rpm

N/A 1270 rpm

N/A 150 lb·ft²6.4 kg·m²

N/A 520 in²3340 cm²

318H

N/A 26900 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1750 rpm

N/A 1270 rpm

N/A 200 lb·ft²8.4 kg·m²

N/A 780 in²5010 cm²

221-PGC

N/A 21400 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1530 rpm

N/A 1090 rpm

N/A 280 lb·ft²12 kg·m²

N/A 720 in²4640 cm²

321-PGC

N/A 31500 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1530 rpm

N/A 1090 rpm

N/A 380 lb·ft²16 kg·m²

N/A 1100 in²6960 cm²

124H-PGC

N/A 18900 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1350 rpm

N/A 950 rpm

N/A 370 lb·ft²16 kg·m²

N/A 570 in²3710 cm²

224H-PGC

N/A 37300 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1350 rpm

N/A 950 rpm

N/A 510 lb·ft²22 kg·m²

N/A 1100 in²7410 cm²

324H-PGC

N/A 55100 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1350 rpm

N/A 950 rpm

N/A 620 lb·ft²26 kg·m²

N/A 1700 in²11100 cm²

124SHD

N/A 23400 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1350 rpm

N/A 950 rpm

N/A 380 lb·ft²16 kg·m²

N/A 570 in²3710 cm²

224SHD

N/A 46700 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1350 rpm

N/A 950 rpm

N/A 520 lb·ft²22 kg·m²

N/A 1100 in²7410 cm²

324SHD

N/A 70100 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1350 rpm

N/A 950 rpm

N/A 630 lb·ft²27 kg·m²

N/A 1700 in²11100 cm²

227-PGC

N/A 41800 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure Power Grip Clutch

N/A 1200 rpm

N/A 850 rpm

N/A 700 lb·ft²29 kg·m²

N/A 1500 in²9430 cm²
