Item # |
Item Name |
Maximum Speed |
Total Inertia |
Ring, FD, and QC Adapter Weight |
Ring, FD, and QC Adapter Inertia |
|---|---|---|---|---|---|

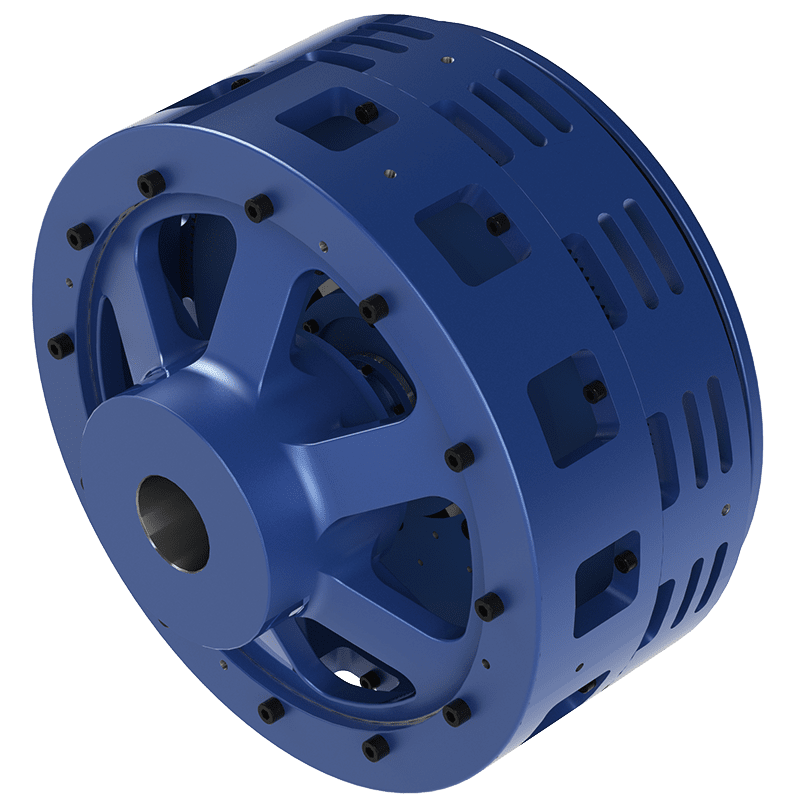

| 336-AL /Asset/Clutch-Grinding-Mill.png | N/A 168000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 900 rpm | Total Inertia N/A 3650 lb·ft²153 kg·m² | Ring, FD, and QC Adapter Weight N/A 616 lb279 kg | Ring, FD, and QC Adapter Inertia N/A 932 lb·ft²39 kg·m² |
| 242-AL /Asset/Clutch-Grinding-Mill.png | N/A 174000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 750 rpm | Total Inertia N/A 10600 lb·ft²445 kg·m² | Ring, FD, and QC Adapter Weight N/A 2820 lb1280 kg | Ring, FD, and QC Adapter Inertia N/A 6980 lb·ft²293 kg·m² |
| 342-AL /Asset/Clutch-Grinding-Mill.png | N/A 259000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 750 rpm | Total Inertia N/A 13000 lb·ft²546 kg·m² | Ring, FD, and QC Adapter Weight N/A 3620 lb1640 kg | Ring, FD, and QC Adapter Inertia N/A 9370 lb·ft²394 kg·m² |
| 248-AL /Asset/Clutch-Grinding-Mill.png | N/A 311000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 650 rpm | Total Inertia N/A 20400 lb·ft²857 kg·m² | Ring, FD, and QC Adapter Weight N/A 4000 lb1810 kg | Ring, FD, and QC Adapter Inertia N/A 12700 lb·ft²533 kg·m² |
| 348-AL /Asset/Clutch-Grinding-Mill.png | N/A 463000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 650 rpm | Total Inertia N/A 23100 lb·ft²970 kg·m² | Ring, FD, and QC Adapter Weight N/A 4220 lb1910 kg | Ring, FD, and QC Adapter Inertia N/A 13700 lb·ft²575 kg·m² |
| 260-AL /Asset/Clutch-Grinding-Mill.png | N/A 632000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 525 rpm | Total Inertia N/A 45500 lb·ft²1910 kg·m² | Ring, FD, and QC Adapter Weight N/A 7290 lb3310 kg | Ring, FD, and QC Adapter Inertia N/A 19000 lb·ft²799 kg·m² |
| 360-AL /Asset/Clutch-Grinding-Mill.png | N/A 940000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 525 rpm | Total Inertia N/A 53600 lb·ft²2250 kg·m² | Ring, FD, and QC Adapter Weight N/A 6400 lb2900 kg | Ring, FD, and QC Adapter Inertia N/A 31300 lb·ft²1310 kg·m² |
| 460-AL /Asset/Clutch-Grinding-Mill.png | N/A 1250000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A 525 rpm | Total Inertia N/A 61500 lb·ft²2580 kg·m² | Ring, FD, and QC Adapter Weight N/A 7250 lb3290 kg | Ring, FD, and QC Adapter Inertia N/A 35500 lb·ft²1490 kg·m² |
| 436-AL /Asset/Clutch-Grinding-Mill.png | N/A 41 Inch (in) Dimension (A) Power Grip Mill Clutch with Axil Locking | Maximum Speed N/A | Total Inertia N/A | Ring, FD, and QC Adapter Weight N/A | Ring, FD, and QC Adapter Inertia N/A |
| 224H /Asset/Clutch-Grinding-Mill.png | N/A 37300 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 1350 rpm | Total Inertia N/A 746 lb·ft²31.3 kg·m² | Ring, FD, and QC Adapter Weight N/A 557 lb253 kg | Ring, FD, and QC Adapter Inertia N/A 436 lb·ft²18.3 kg·m² |
| 324H /Asset/Clutch-Grinding-Mill.png | N/A 55100 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 1350 rpm | Total Inertia N/A 864 lb·ft²36.3 kg·m² | Ring, FD, and QC Adapter Weight N/A 622 lb282 kg | Ring, FD, and QC Adapter Inertia N/A 487 lb·ft²20.4 kg·m² |
| 230H /Asset/Clutch-Grinding-Mill.png | N/A 73200 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 1100 rpm | Total Inertia N/A 1970 lb·ft²82.9 kg·m² | Ring, FD, and QC Adapter Weight N/A 997 lb452 kg | Ring, FD, and QC Adapter Inertia N/A 1060 lb·ft²44.6 kg·m² |
| 330H /Asset/Clutch-Grinding-Mill.png | N/A 108000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 1100 rpm | Total Inertia N/A 2530 lb·ft²106 kg·m² | Ring, FD, and QC Adapter Weight N/A 1070 lb486 kg | Ring, FD, and QC Adapter Inertia N/A 1210 lb·ft²50.6 kg·m² |
| 236 /Asset/Clutch-Grinding-Mill.png | N/A 114000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 900 rpm | Total Inertia N/A 3930 lb·ft²165 kg·m² | Ring, FD, and QC Adapter Weight N/A 1250 lb568 kg | Ring, FD, and QC Adapter Inertia N/A 1960 lb·ft²82.3 kg·m² |
| 336 /Asset/Clutch-Grinding-Mill.png | N/A 168000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 900 rpm | Total Inertia N/A 4870 lb·ft²204 kg·m² | Ring, FD, and QC Adapter Weight N/A 1440 lb655 kg | Ring, FD, and QC Adapter Inertia N/A 2440 lb·ft²102 kg·m² |
| 242 /Asset/Clutch-Grinding-Mill.png | N/A 174000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 750 rpm | Total Inertia N/A 9100 lb·ft²382 kg·m² | Ring, FD, and QC Adapter Weight N/A 2380 lb1080 kg | Ring, FD, and QC Adapter Inertia N/A 5710 lb·ft²240 kg·m² |
| 342 /Asset/Clutch-Grinding-Mill.png | N/A 259000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 750 rpm | Total Inertia N/A 10900 lb·ft²458 kg·m² | Ring, FD, and QC Adapter Weight N/A 2610 lb1180 kg | Ring, FD, and QC Adapter Inertia N/A 6620 lb·ft²278 kg·m² |
| 248 /Asset/Clutch-Grinding-Mill.png | N/A 311000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 650 rpm | Total Inertia N/A 18500 lb·ft²777 kg·m² | Ring, FD, and QC Adapter Weight N/A 3560 lb1610 kg | Ring, FD, and QC Adapter Inertia N/A 10600 lb·ft²445 kg·m² |
| 348 /Asset/Clutch-Grinding-Mill.png | N/A 463000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 650 rpm | Total Inertia N/A 20600 lb·ft²865 kg·m² | Ring, FD, and QC Adapter Weight N/A 3860 lb1750 kg | Ring, FD, and QC Adapter Inertia N/A 11900 lb·ft²500 kg·m² |
| 260 /Asset/Clutch-Grinding-Mill.png | N/A 632000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 525 rpm | Total Inertia N/A 43200 lb·ft²1810 kg·m² | Ring, FD, and QC Adapter Weight N/A 5710 lb2590 kg | Ring, FD, and QC Adapter Inertia N/A 24600 lb·ft²1030 kg·m² |
| 360 /Asset/Clutch-Grinding-Mill.png | N/A 940000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 525 rpm | Total Inertia N/A 51700 lb·ft²2170 kg·m² | Ring, FD, and QC Adapter Weight N/A 6490 lb2940 kg | Ring, FD, and QC Adapter Inertia N/A 29300 lb·ft²1230 kg·m² |
| 460 /Asset/Clutch-Grinding-Mill.png | N/A 1250000 Newton Meter (N.m) Static Torque Power Grip Mill Clutch | Maximum Speed N/A 525 rpm | Total Inertia N/A 59400 lb·ft²2490 kg·m² | Ring, FD, and QC Adapter Weight N/A 7190 lb3260 kg | Ring, FD, and QC Adapter Inertia N/A 33500 lb·ft²1410 kg·m² |
| 436 /Asset/Clutch-Grinding-Mill.png | N/A 41 Inch (in) Dimension (A) Power Grip Mill Clutch | Maximum Speed N/A | Total Inertia N/A | Ring, FD, and QC Adapter Weight N/A | Ring, FD, and QC Adapter Inertia N/A |
