Power Grip PO Clutches On WPT Power Corporation

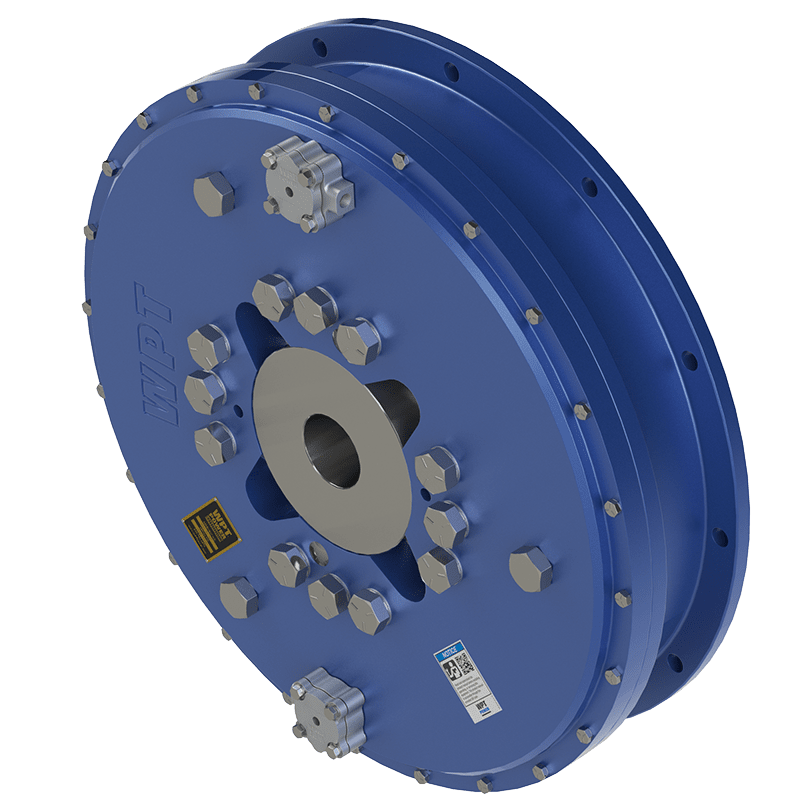

The Power Grip PO Clutch is a pneumatic clutch suitable for inline or shaft-to-shaft applications. This design utilizes a large diaphragm that compensates for wear during the life of the friction material with no adjustment necessary. Standard Quick Release Valves ensure swift disengagements. The manual mechanical lockup feature allows clutch engagement in the event of air system failure. WPT®'s Power Grip PO Clutch is available in 1, 2, or 3 plate construction with diameters ranging from 14" thru 42".

Item #	Item Name	Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure	Maximum Speed	Maximum Slip Speed	Total Inertia
114-POC	N/A 4340 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 38400 lbf·in4340 N·m	N/A 2450 rpm	N/A 1640 rpm	N/A 47 lb·ft²2.0 kg·m²
214-POC	N/A 8680 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 76800 lbf·in8680 N·m	N/A 2450 rpm	N/A 1640 rpm	N/A 54 lb·ft²2.3 kg·m²
314-POC	N/A 13000 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 115000 lbf·in13000 N·m	N/A 2450 rpm	N/A 1640 rpm	N/A 67 lb·ft²2.8 kg·m²
118-POC	N/A 8870 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 78500 lbf·in8870 N·m	N/A 2000 rpm	N/A 1270 rpm	N/A 120 lb·ft²4.9 kg·m²
218-POC	N/A 17700 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 157000 lbf·in17700 N·m	N/A 2000 rpm	N/A 1270 rpm	N/A 130 lb·ft²5.5 kg·m²
318-POC	N/A 26600 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 236000 lbf·in26600 N·m	N/A 2000 rpm	N/A 1270 rpm	N/A 190 lb·ft²7.9 kg·m²
124	N/A 21300 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 188000 lbf·in21300 N·m	N/A 1500 rpm	N/A 950 rpm	N/A 440 lb·ft²18 kg·m²
224	N/A 42600 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 377000 lbf·in42600 N·m	N/A 1500 rpm	N/A 950 rpm	N/A 500 lb·ft²21 kg·m²
324	N/A 63800 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 565000 lbf·in63800 N·m	N/A 1500 rpm	N/A 950 rpm	N/A 600 lb·ft²25 kg·m²
230	N/A 82600 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 731000 lbf·in82600 N·m	N/A 1300 rpm	N/A 760 rpm	N/A 1400 lb·ft²60 kg·m²
330	N/A 123900 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 1097000 lbf·in123900 N·m	N/A 1300 rpm	N/A 760 rpm	N/A 1900 lb·ft²78 kg·m²
236-POC	N/A 146900 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 1300000 lbf·in146900 N·m	N/A 900 rpm	N/A 640 rpm	N/A 2900 lb·ft²120 kg·m²
336-POC	N/A 219200 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 1940000 lbf·in219200 N·m	N/A 900 rpm	N/A 640 rpm	N/A 3700 lb·ft²160 kg·m²
342-POC	N/A 380800 Newton Meter (N.m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Power Grip PO Clutch	N/A 3370000 lbf·in380800 N·m	N/A 750 rpm	N/A 550 rpm	N/A 8500 lb·ft²360 kg·m²
