  • Type 2 Power Take-Off (PTO) Units

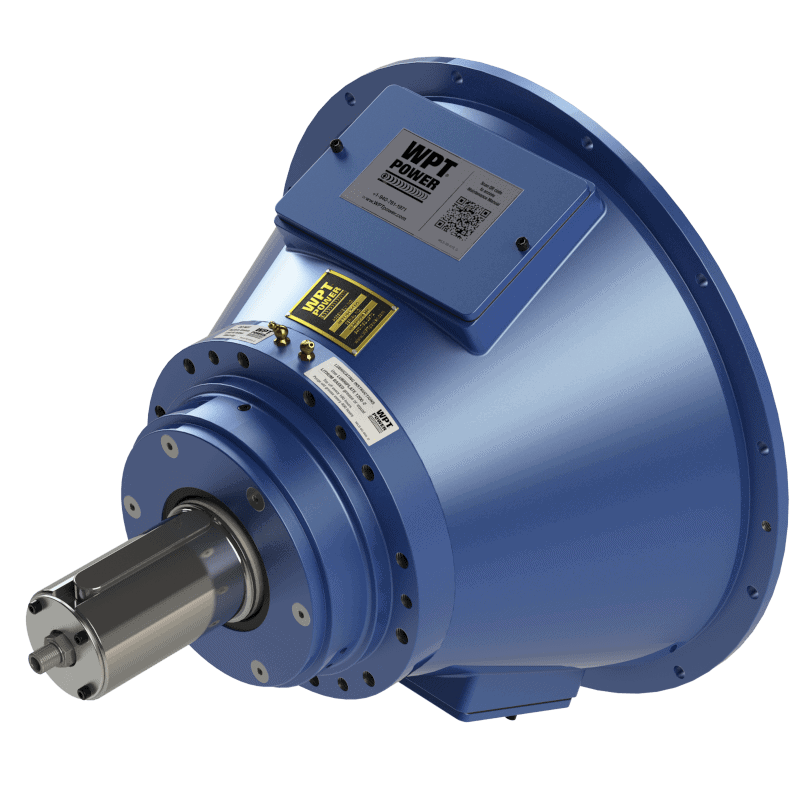

Type 2 is a high-capacity Power Take-off (PTO). With a versatile design, dry clutch, and top-of-the-line spherical roller bearings, the Type 2 PTO has been field-proven in many applications. Air or hydraulic actuation options make this PTO easy to integrate into your equipment. Pair with Python® or HPU for remote engagement options.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension - A

Dimension - B

Dimension - C

Diameter

N/A 1800 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A 17-5/16 in439.6 mm N/A 11-3/16 in284.2 mm N/A 3-3/8 in85.7 mm N/A 2.750 in69.85 mm
N/A 2600 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A 17-5/16 in439.6 mm N/A 11-3/16 in284.2 mm N/A 3-3/8 in85.7 mm N/A 2.750 in69.85 mm
N/A 801.7 Millimeter (mm) Size Dimension A Type 2 Power Take-Off (PTO) Unit N/A 31-9/16 in801.7 mm N/A 21-1/16 in535.0 mm N/A 7-1/4 in184.2 mm N/A 3.625 in92.08 mm
N/A 5100 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A 31-9/16 in801.7 mm N/A 21-1/16 in535.0 mm N/A 7-1/4 in184.2 mm N/A 3.625 in92.08 mm
N/A 518.6 Millimeter (mm) Size Dimension A Type 2 Power Take-Off (PTO) Unit N/A 20-7/16 in518.6 mm N/A 20-7/16 in518.6 mm N/A 5-1/2 in140.0 mm N/A 2.756 in70.00 mm
N/A 5100 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A 20-7/16 in518.6 mm N/A 20-7/16 in518.6 mm N/A 5-11/16 in144.0 mm N/A 3.542 in90.00 mm
N/A 6400 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A 31-7/8 in810.3 mm N/A 20-15/16 in531.5 mm N/A 7-1/4 in184.2 mm N/A 3.625 in92.08 mm
N/A 9600 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A 33-7/16 in849.3 mm N/A 22-7/16 in569.2 mm N/A 7-1/4 in184.2 mm N/A 3.625 in92.08 mm
N/A 3400 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A N/A N/A N/A
N/A 3400 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A N/A N/A N/A
N/A 9600 Newton Meter (N.m) Maximum Torque Type 2 Power Take-Off (PTO) Unit N/A N/A N/A N/A
