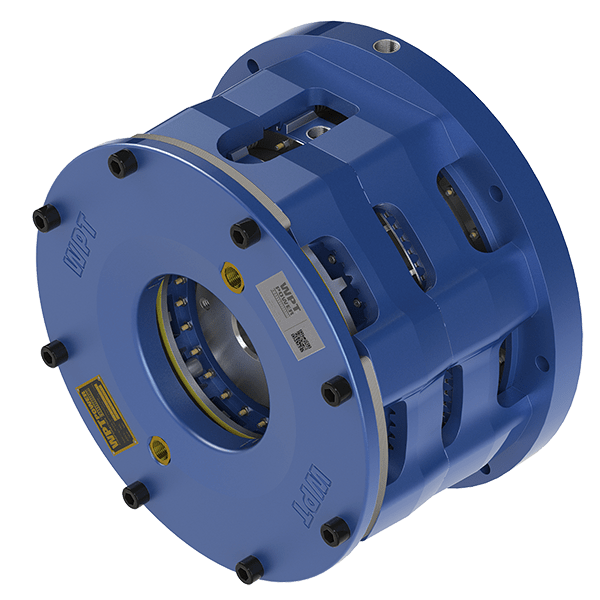

Copper Water Cooled Brakes On WPT Power Corporation

The Copper Water Cooled (CWC) brake is designed for maximum heat transfer in a small package. The CWC is perfect for tension control equipment, coil processing, paper mill unwinding stands, and large inertia stops. The air tube actuator allows for smooth torque transitions while delivering peak performance.

Item #	Item Name	Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure	High Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure	Parallel Piping Heat Dissipation Capacity	Series Piping Heat Dissipation Capacity
114-CW	N/A 1820 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 16100 lbf·in1820 N·m	N/A 24900 lbf·in2820 N·m	N/A 75 hp56 kW	N/A 50 hp37 kW
214-CW	N/A 3640 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 32200 lbf·in3640 N·m	N/A 49800 lbf·in5630 N·m	N/A 150 hp112 kW	N/A 100 hp75 kW
314-CW	N/A 5460 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 48400 lbf·in5460 N·m	N/A 74700 lbf·in8450 N·m	N/A 225 hp168 kW	N/A 150 hp112 kW
118-CW	N/A 4150 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 36700 lbf·in4150 N·m	N/A 56700 lbf·in6410 N·m	N/A 120 hp89 kW	N/A 80 hp60 kW
218-CW	N/A 8290 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 73400 lbf·in8290 N·m	N/A 113000 lbf·in12800 N·m	N/A 240 hp179 kW	N/A 160 hp119 kW
318-CW	N/A 12400 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 110000 lbf·in12400 N·m	N/A 170000 lbf·in19200 N·m	N/A 360 hp268 kW	N/A 240 hp179 kW
124-CW	N/A 8940 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 79200 lbf·in8940 N·m	N/A 122000 lbf·in13800 N·m	N/A 285 hp213 kW	N/A 190 hp142 kW
224-CW	N/A 17900 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 158000 lbf·in17900 N·m	N/A 245000 lbf·in27600 N·m	N/A 570 hp425 kW	N/A 380 hp283 kW
324-CW	N/A 26800 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake	N/A 237000 lbf·in26800 N·m	N/A 367000 lbf·in41500 N·m	N/A 855 hp638 kW	N/A 570 hp425 kW

114-CW

N/A 1820 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 16100 lbf·in1820 N·m

N/A 24900 lbf·in2820 N·m

N/A 75 hp56 kW

N/A 50 hp37 kW

214-CW

N/A 3640 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 32200 lbf·in3640 N·m

N/A 49800 lbf·in5630 N·m

N/A 150 hp112 kW

N/A 100 hp75 kW

314-CW

N/A 5460 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 48400 lbf·in5460 N·m

N/A 74700 lbf·in8450 N·m

N/A 225 hp168 kW

N/A 150 hp112 kW

118-CW

N/A 4150 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 36700 lbf·in4150 N·m

N/A 56700 lbf·in6410 N·m

N/A 120 hp89 kW

N/A 80 hp60 kW

218-CW

N/A 8290 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 73400 lbf·in8290 N·m

N/A 113000 lbf·in12800 N·m

N/A 240 hp179 kW

N/A 160 hp119 kW

318-CW

N/A 12400 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 110000 lbf·in12400 N·m

N/A 170000 lbf·in19200 N·m

N/A 360 hp268 kW

N/A 240 hp179 kW

124-CW

N/A 8940 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 79200 lbf·in8940 N·m

N/A 122000 lbf·in13800 N·m

N/A 285 hp213 kW

N/A 190 hp142 kW

224-CW

N/A 17900 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 158000 lbf·in17900 N·m

N/A 245000 lbf·in27600 N·m

N/A 570 hp425 kW

N/A 380 hp283 kW

324-CW

N/A 26800 Newton Meter (N·m) Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure Copper Water Cooled Brake

N/A 237000 lbf·in26800 N·m

N/A 367000 lbf·in41500 N·m

N/A 855 hp638 kW

N/A 570 hp425 kW

Item #

Item Name

Medium Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure

High Coefficient Pneumatic Torque Rating at 100 Pound per Square Inch (psi) (7 bar) Pressure

Parallel Piping Heat Dissipation Capacity

Series Piping Heat Dissipation Capacity
