  • Planetary Hydraulic Hoists

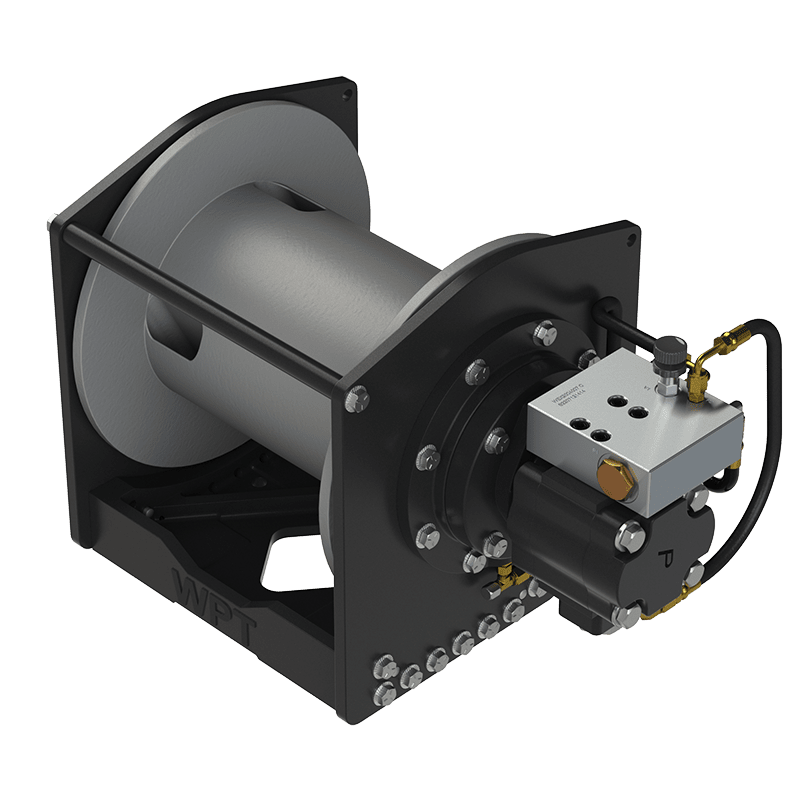

WPT Planetary Hydraulic Hoists are ideal for applications in the oil & gas, utility, and crane industries. WPT’s hoist designs adhere to SAE J706 standards and provide lifting capacities of 8,000 lbf and 12,000 lbf, respectively. WPT’s industrial hoists offer an efficient two-stage planetary design and compact footprint, ideal for mobile equipment.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Hydraulic Motor Flow

Hydraulic Motor Pressure

Bare Drum Line Pull

Bare Drum Line Speed

N/A 8000 Pound Force (lbf) Bare Drum Line Pull Planetary Hydraulic Hoist N/A 65 gal/min246 L/min N/A 1400 lbf/in²9.7 MPa N/A 8000 lbf36 kN N/A 138 ft/min42 m/min
N/A 12000 Pound Force (lbf) Bare Drum Line Pull Planetary Hydraulic Hoist N/A 75 gal/min284 L/min N/A 1700 lbf/in²12 MPa N/A 12000 lbf53 kN N/A 154 ft/min47 m/min
