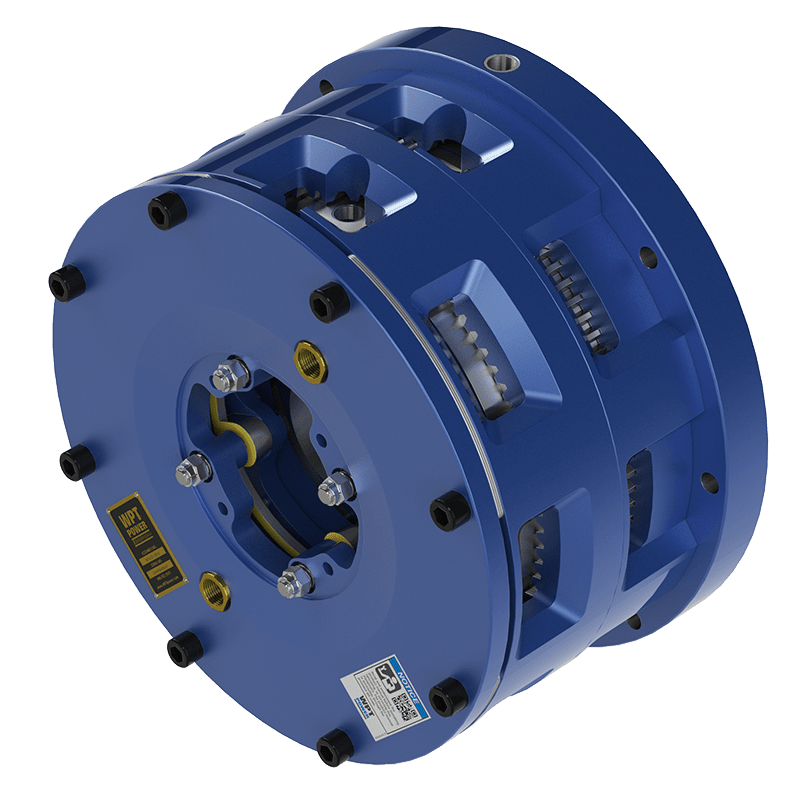

WPT® Steel Water Cooled (SWC) Brakes are designed for high-heat applications, such as coil processors and high-cycle press / shear lines. The unique design of the steel water jackets allows for the rapid transfer of heat to an external cooler or recirculation system. This increased heat transfer capabilities allow the Steel WCB to operate in continuous slip applications. WPT®'s Steel WCBs are available in 1, 2, or 3 plate configurations with sizes ranging from 6 through 30 inches.
1 - 25 of 25 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Static Torque at 100 Pounds per Square Inch (psi) (7 Bar) Pressure

Maximum Speed Hub and Drive Plate

Maximum Speed Slip

Heat Dissipation Capacity

N/A 382 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 3380 lbf·in382 N·m N/A 5290 rpm N/A 3530 rpm N/A 6 hp4.5 kW
N/A 660 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 5840 lbf·in660 N·m N/A 4300 rpm N/A 2870 rpm N/A 9 hp6.7 kW
N/A 1320 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 11700 lbf·in1320 N·m N/A 4300 rpm N/A 2870 rpm N/A 18 hp13.4 kW
N/A 1480 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 13100 lbf·in1480 N·m N/A 3130 rpm N/A 2090 rpm N/A 19 hp14.2 kW
N/A 2960 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 26200 lbf·in2960 N·m N/A 3130 rpm N/A 2090 rpm N/A 38 hp28.3 kW
N/A 4440 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 39300 lbf·in4440 N·m N/A 3130 rpm N/A 2090 rpm N/A 57 hp42.6 kW
N/A 2490 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 22000 lbf·in2490 N·m N/A 2460 rpm N/A 1640 rpm N/A 28 hp20.9 kW
N/A 5000 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 44100 lbf·in5000 N·m N/A 2460 rpm N/A 1640 rpm N/A 56 hp41.8 kW
N/A 7470 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 66100 lbf·in7470 N·m N/A 2460 rpm N/A 1640 rpm N/A 84 hp62.7 kW
N/A 3420 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 30300 lbf·in3420 N·m N/A 2150 rpm N/A 1440 rpm N/A 38 hp28.3 kW
N/A 6850 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 60600 lbf·in6850 N·m N/A 2150 rpm N/A 1440 rpm N/A 76 hp56.7 kW
N/A 5720 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 50600 lbf·in5720 N·m N/A 1950 rpm N/A 1300 rpm N/A 44 hp32.8 kW
N/A 11400 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 101000 lbf·in11400 N·m N/A 1910 rpm N/A 1280 rpm N/A 88 hp65.6 kW
N/A 17200 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 152000 lbf·in17200 N·m N/A 1950 rpm N/A 1300 rpm N/A 130 hp98.4 kW
N/A 8230 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 72800 lbf·in8230 N·m N/A 1640 rpm N/A 1100 rpm N/A 60 hp44.7 kW
N/A 16500 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 146000 lbf·in16500 N·m N/A 1640 rpm N/A 1100 rpm N/A 120 hp89.5 kW
N/A 9000 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 79600 lbf·in9000 N·m N/A 1430 rpm N/A 955 rpm N/A 96 hp71.6 kW
N/A 18000 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 159000 lbf·in18000 N·m N/A 1430 rpm N/A 955 rpm N/A 190 hp143.2 kW
N/A 14600 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 129000 lbf·in14600 N·m N/A 1430 rpm N/A 955 rpm N/A 96 hp71.6 kW
N/A 29200 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 258000 lbf·in29200 N·m N/A 1430 rpm N/A 955 rpm N/A 190 hp143.2 kW
N/A 16400 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 145000 lbf·in16400 N·m N/A 1270 rpm N/A 850 rpm N/A 110 hp80.5 kW
N/A 23800 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 211000 lbf·in23800 N·m N/A 1270 rpm N/A 850 rpm N/A 140 hp102.2 kW
N/A 47700 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 422000 lbf·in47700 N·m N/A 1270 rpm N/A 850 rpm N/A 270 hp204.3 kW
N/A 61100 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 541000 lbf·in61100 N·m N/A 1150 rpm N/A 770 rpm N/A 140 hp204.3 kW
N/A 91600 Newton Meter (N·m) Static Torque at 100 Pounds per Square Inch (psi) Pressure Steel Water Cooled Brake N/A 811000 lbf·in91600 N·m N/A 1150 rpm N/A 770 rpm N/A 210 hp306.5 kW
